Description
Main product features
- Powerful pumps for large installations
- Withstands frost down to -20°C
- Electronic water flow regulation
Product Features
- Extremely quiet operation
- Easy water flow adjustment
- Integrated thermal protection
- Immersion and dry installation
- Energy performance thanks to low power consumption
- Frost resistant to -20°C
- High quality finish with stainless steel components
- Vacuums even at low water levels
- Removable foot for space-saving assembly
- Electronic regulation with optional accessory InScenio FM-Master 3
- Extremely quiet operation
- Easy flow regulation
- Integrated thermal protection
- Installation in or out of water
- Energy performance thanks to low power consumption
- Frost resistant down to -20°C
- High quality finish with stainless steel components
- Vacuums even at low water levels
- Removable foot for less bulky assembly
Main technical characteristics
| Dimensions (L x W x H) | mm | 315 x 140 x 130 |
|---|---|---|
| Nominal voltage | 220 - 240 V / 50 Hz | |
| Energy consumption | W | 85 |
| Length of electric cable | m | 10.00 |
| Net weight | kg | 3.40 |
| Warranty (+ Warranty extension) | Years | 3 + 2 |
| Liters per minute max. | l/min | 83 |
| Liters per hour max. | l/h | 5000 |
| Max. height of water column | m | 4.50 |
| Pressure side connection | mm | 25 |
| Pressure side connection | 1" | |
| Suction side connection | mm | 38 |
| Suction side connection | 1 ½" | |

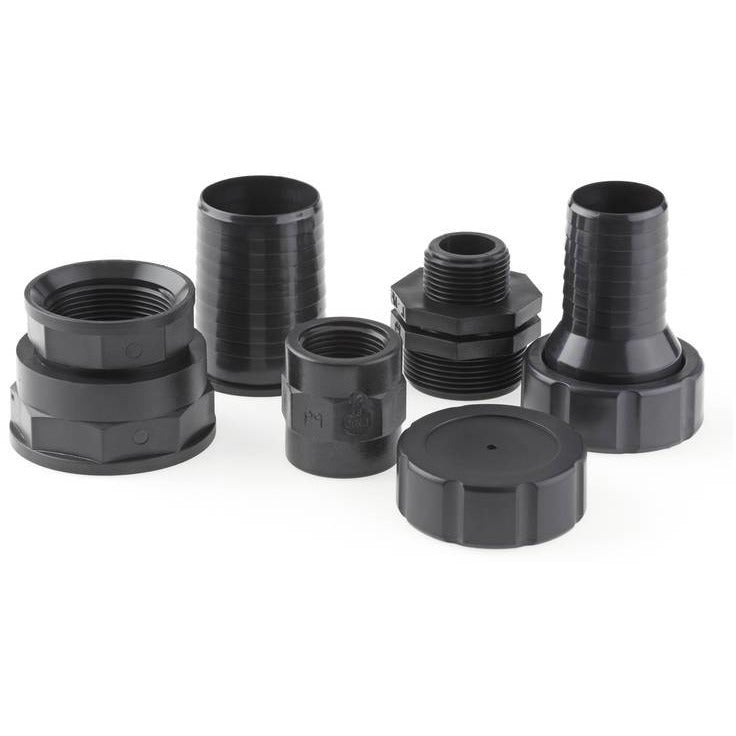

| Pipe connector | mm | 19 / 25 / 32 / 38 |
| Pipe connector | ¾", 1", 1 ¼", 1 ½" | |
| Filter suction surface | cm² | 200 |
| Electronically adjustable | Yes | |
| Installation type | Installation in immersion or dry | |
| Reference number | 56617 | |
| EAN | 4010052566177 |
Details
Stainless steel strainer
The robust stainless steel strainer allows easy filtering of impurity particles up to a particle size of 4 mm.
Water flow adjustment
Easy mechanical adjustment via the blue thumbwheel of the Aquarius Universal Eco 3000 / Eco 4000 in versions 4000 to 12000. Dry installation also possible.
